AddressBar with TProgressBar as background.. : Delphi

Jamie Dale wrote:

> Hi
>
> I saw a snippet of the iPhone on TV today.
>
> The internet address bar was very nice. As the page was loading, the
> ProgressBar was actually the white background of the addressbar!

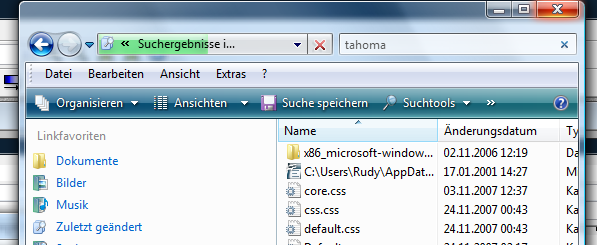

Have you ever used the search tool in Windows Vista's Explorer? That
does the same. The path combobox is underlayed with a progress bar.

http://rvelthuis.de/images/progress-address-bar.png

--
Rudy Velthuis [TeamB]

"The music business is a cruel and shallow money trench, a long
plastic hallway where thieves and pimps run free, and good men
die like dogs. There's also a negative side".
-- Hunter S. Thompson

Hi

I saw a snippet of the iPhone on TV today.

The internet address bar was very nice. As the page was loading, the
ProgressBar was actually the white background of the addressbar!

As the progress was made, a semi transparent blue line grew from left to
right along the addy bar.

Now, can anyone tell me how I could duplicate this using D6???

Thx guys n gals!

JD

"Jamie Dale" <jamie.dale@yahoo.com> wrote in message
news:474df334$1@newsgroups.borland.com...

> Now, can anyone tell me how I could duplicate this using D6???

On versions of Windows later then Win95, you can subclass an edit control to
intercept the WM_CTLCOLOREDIT message (for TEdit, it would be
CN_CTLCOLOREDIT instead) and return a brush that is created from a bitmap.
You can then draw a bitmap of whatever type of progress display you want.
Here is a simple example:

TForm1 = class(TForm)
published
Edit1: TEdit;
Timer1: TTimer;
procedure FormCreate(Sender: TObject)
procedure Timer1Timer(Sender: TObject);
private
OldWndProc: TWndMethod;
procedure EditWndProc(var Message: TMessage);
end;

procedure TForm1.FormCreate(Sender: TObject);
begin
OldWndProc := Edit1.WindowProc;
Edit1.WindowProc := EditWndProc;
end;

procedure TForm1.EditWndProc(var Message: TMessage);
var
bmp: TBitmap;
r: TRect;
oldRight: Integer;
begin
if Message.Msg = CN_CTLCOLOREDIT then
begin
Windows.SetTextColor(Message.WParam,
ColorToRGB(Edit1.Font.Color));
Window.SetBkMode(Message.WParam, TRANSPARENT);

bmp := TBitmap.Create;
try
r := Edit1.ClientRect;
bmp.Width := (r.Right - r.Left);
bmp.Height := (r.Bottom - r.Top);

if Edit1.Tag > 0 then
begin
oldRight := r.Right;
r.Right := r.Left + ((r.Right - r.Left) *
(Extended(Edit1->Tag) / 100);

bmp.Canvas.Brush.Color := clAqua;
bmp.Canvas.FillRect(r);

r.Left := r.Right;
r.Right := oldRight;
end;

bmp.Canvas.Brush.Color := Edit1.Color;
bmp.Canvas.FillRect(r);

Message.Result := Windows.CreatePatternBrush(bmp.Handle);
finally
bmp.Free;
end;

Exit;
end;

OldWndProc(Message);
end;

procedure TForm1.Timer1Timer(Sender: TObject);
begin
// I set Timer1.Interval to 50ms...

if Edit1.Tag >= 100 then
Edit1.Tag := 0
else
Edit1.Tag := Edit1.Tag + 1;

Edit1.Invalidate;
end;


Gambit

Hi Rudy,

No I wasn't aware of that (I've not touched Vista and tbh I'm not keen on
doing so either!).

Very nice screenshot though!. Despite not liking Vista for it's technical
stuff, I do think M$ put a nice graphical system together for it - even it
if it rather heavy on resources (from what I've heard). Is there a skin like
this for XP?

JD
"Rudy Velthuis [TeamB]" <newsgroups@rvelthuis.de> wrote in message
news:xn0fe99tkfknaf3035@newsgroups.borland.com...
> Jamie Dale wrote:
>
>> Hi
>>
>> I saw a snippet of the iPhone on TV today.
>>
>> The internet address bar was very nice. As the page was loading, the
>> ProgressBar was actually the white background of the addressbar!
>
> Have you ever used the search tool in Windows Vista's Explorer? That
> does the same. The path combobox is underlayed with a progress bar.
>
> http://rvelthuis.de/images/progress-address-bar.png
>
> --
> Rudy Velthuis [TeamB]
>
> "The music business is a cruel and shallow money trench, a long
> plastic hallway where thieves and pimps run free, and good men
> die like dogs. There's also a negative side".
> -- Hunter S. Thompson

Remy,

As always, your the man!

Thanks for that, I'll save the code onto the laptop and give it a spin
during my lunch today!

Cheers

JD

"Remy Lebeau (TeamB)" <no.spam@no.spam.com> wrote in message
news:474e1291@newsgroups.borland.com...
>
> "Jamie Dale" <jamie.dale@yahoo.com> wrote in message
> news:474df334$1@newsgroups.borland.com...
>
>> Now, can anyone tell me how I could duplicate this using D6???
>
> On versions of Windows later then Win95, you can subclass an edit control
> to intercept the WM_CTLCOLOREDIT message (for TEdit, it would be
> CN_CTLCOLOREDIT instead) and return a brush that is created from a bitmap.
> You can then draw a bitmap of whatever type of progress display you want.
> Here is a simple example:
>
> TForm1 = class(TForm)
> published
> Edit1: TEdit;
> Timer1: TTimer;
> procedure FormCreate(Sender: TObject)
> procedure Timer1Timer(Sender: TObject);
> private
> OldWndProc: TWndMethod;
> procedure EditWndProc(var Message: TMessage);
> end;
>
> procedure TForm1.FormCreate(Sender: TObject);
> begin
> OldWndProc := Edit1.WindowProc;
> Edit1.WindowProc := EditWndProc;
> end;
>
> procedure TForm1.EditWndProc(var Message: TMessage);
> var
> bmp: TBitmap;
> r: TRect;
> oldRight: Integer;
> begin
> if Message.Msg = CN_CTLCOLOREDIT then
> begin
> Windows.SetTextColor(Message.WParam,
> ColorToRGB(Edit1.Font.Color));
> Window.SetBkMode(Message.WParam, TRANSPARENT);
>
> bmp := TBitmap.Create;
> try
> r := Edit1.ClientRect;
> bmp.Width := (r.Right - r.Left);
> bmp.Height := (r.Bottom - r.Top);
>
> if Edit1.Tag > 0 then
> begin
> oldRight := r.Right;
> r.Right := r.Left + ((r.Right - r.Left) *
> (Extended(Edit1->Tag) / 100);
>
> bmp.Canvas.Brush.Color := clAqua;
> bmp.Canvas.FillRect(r);
>
> r.Left := r.Right;
> r.Right := oldRight;
> end;
>
> bmp.Canvas.Brush.Color := Edit1.Color;
> bmp.Canvas.FillRect(r);
>
> Message.Result := Windows.CreatePatternBrush(bmp.Handle);
> finally
> bmp.Free;
> end;
>
> Exit;
> end;
>
> OldWndProc(Message);
> end;
>
> procedure TForm1.Timer1Timer(Sender: TObject);
> begin
> // I set Timer1.Interval to 50ms...
>
> if Edit1.Tag >= 100 then
> Edit1.Tag := 0
> else
> Edit1.Tag := Edit1.Tag + 1;
>
> Edit1.Invalidate;
> end;
>
>
> Gambit
>

Jamie Dale wrote:

> Is there a skin like this for XP?

I have no idea. I never use skins.
--
Rudy Velthuis [TeamB]

"The bureaucracy is expanding to meet the needs of an expanding
bureaucracy." -- Unknown

Jamie,

| Is there a skin like this for XP?

Take a look at VCLskin.

http://www.link-rank.com/

--
Q

11/29/2007 10:43:15

XanaNews Version 1.17.5.7 [Q's salutation mod]
